Krauss-Maffei Injection Molding Machine

Horizontal Type

Krauss-Maffei

Model: KM250-1400C1

280 Tons

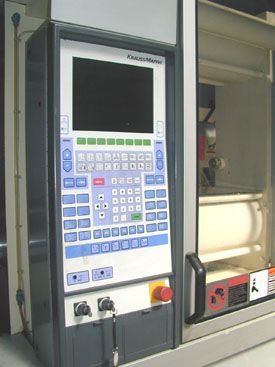

NC-3F Controller

21.8 oz. Shot Size

Platen Size: 39.17 x 41.34

Distance between Tie Bars: 24.8 H x 24.8 V

Max Daylight: 45.2

Screw Diamter: 60mm

Mold Opening Stroke: 32.28

Mold Height Min: 12.99

Inj. Pressure: 29002 psi

Inj. Rate: 19.83 cu.In/sec

Hours: 38,277

460 Volts

Krauss Options:

HKO

Core Pull

Robot Interface

SPI Pattern

Dims: 19.6 L x 7 W

Weight 29,101 lbs

Price: $72,500
